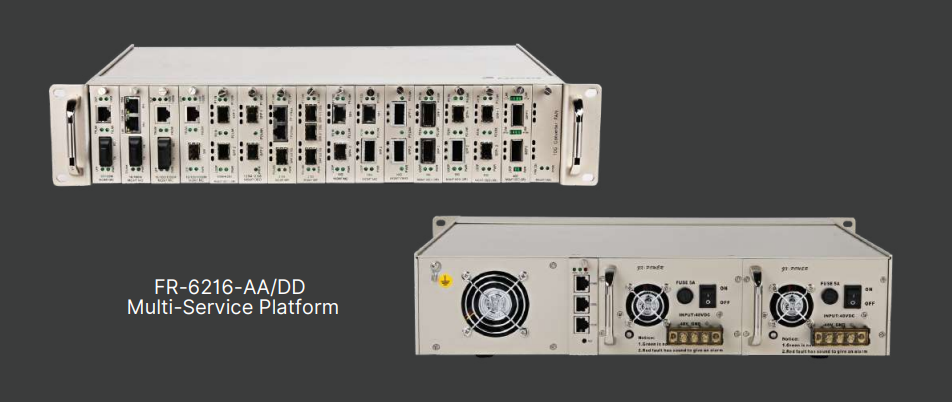

FR-6216-AA

Hard Spec. FR-6216-AA
IEEE Standard IEEE 802.3 / IEEE 802.3u / IEEE 802.3x
Interface Parameters
Electric Port: 1 × 10/100/1000Base-T Adaptive (RJ45)
Serial Port: 1 × RS-232 Console Management Port
Slot Configuration 1 × Managed Card + 16 × Service Cards slot
LED Indicators
System LED Indicators: Power, System Status
Service interface LED indicators are provided by each service card.
Power Supply Design
Input Voltage: AC 220V
Power Configuration: Dual power modules, supporting redundant power supply
Power Protection: Supports reverse connection protection, over-current
protection and over-voltage protection
Power Consumption ≤80W
Environmental Index
Operating Temperature: 0℃～55℃
Storage Temperature: -20℃～70℃
Operating Humidity: 5% ～ 95% RH (Non-condensing)
Heat Dissipation Mode: Fan cooling
MTBF ≥100000 Hours
Installation Spec.
Rack-mount Installation
Dimensions (L×W×H, mm): 482.5×310×90
Warranty 3 Years
Weight 7000g
IP Rating IP40
